Bioloid Build Tips, #4

16 Oct 2009 dynamixel  robots  More SES Assemblies

I've been assembling a new robot this week, it's using a combination of Bioloid and SES parts.

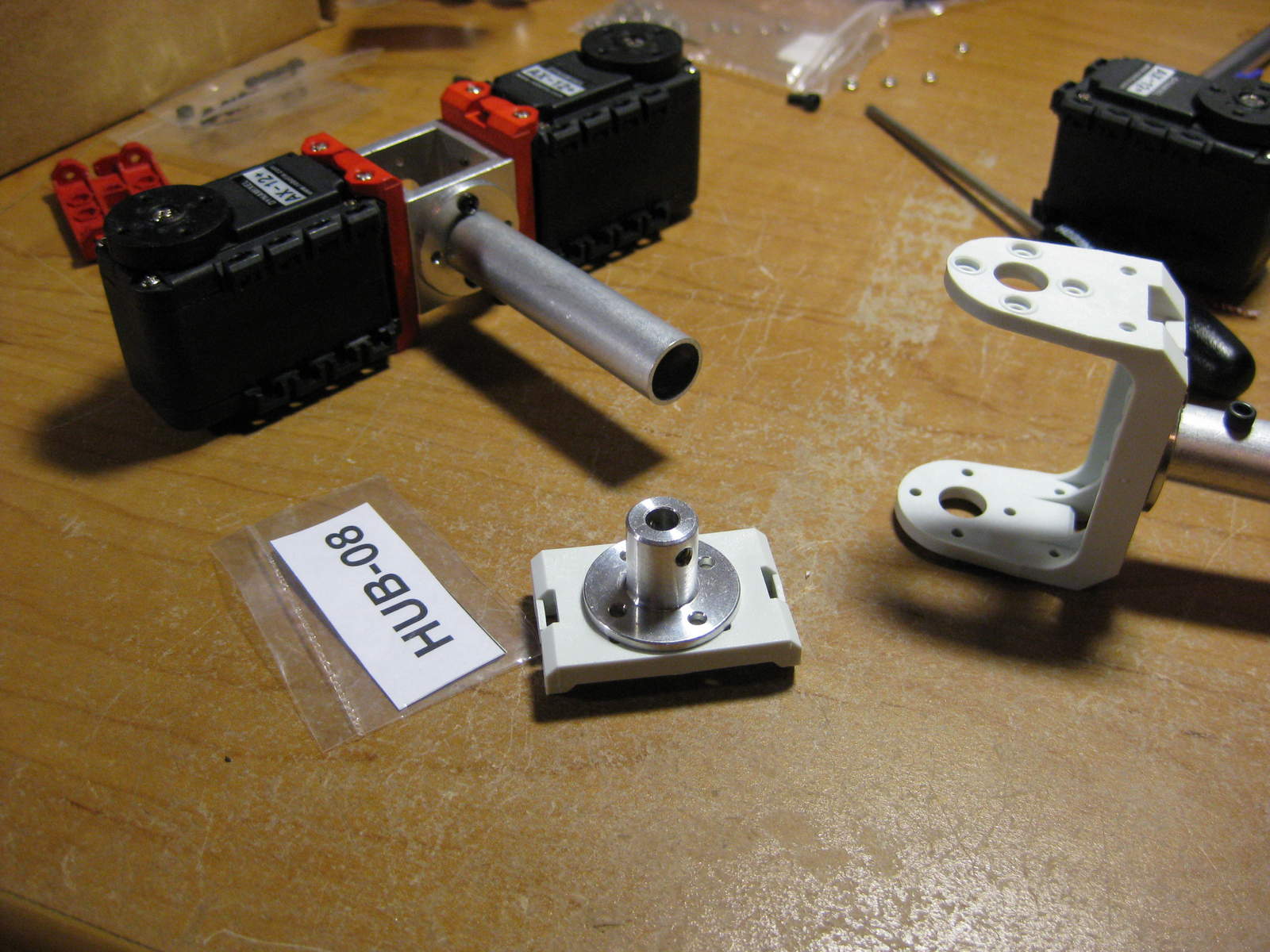

The photo shows an assembly using SES tubing, SES HUB-08 parts, and the aluminum cubes from SES. I had to enlarge the holes in the red Bioloid parts in order for them to connect to the cube. The HUB-08 fits perfectly on the back of the Bioloid bracket.
